Gravity Die Casting Machine

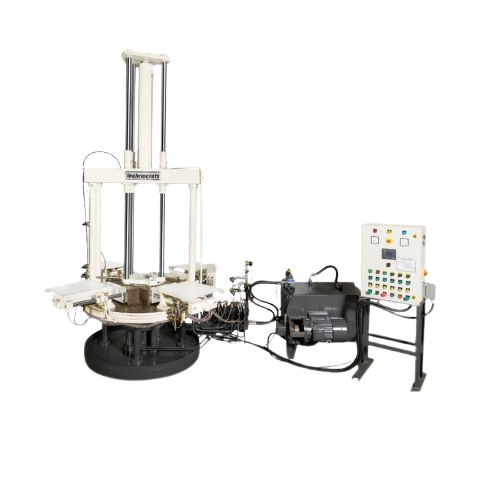

Alloy Wheel Gravity Die Casting Machine
Die Casting Machine are suitable for the production of large parts with high strength requirements.At present, we produces cold chamber die casting machines from 80 tons to 400 tons, including TDC 80T, TDC 120T, TDC 180T, TDC 250T and TDC 400T.
| Machine Type | Aluminium Pressure |
| Die Locking Force | 20-40 ton, 40-80 ton, 80-100 ton, >100 ton, 0-10 ton, 10-20 ton |
| Material to be Casted | Aluminium |
| Max Casting Area | 150-200 cm2, 200-250 cm2, >250 cm2, 0-50 cm2, 50-100 cm2, 100-150 cm2 |
| Warranty | 1 Year |
| Power Source | Electric |
- Three Stage Injection
- Centre and Bottom Injection Position
- Centralized Lubrication
- Simple Hydraulic System
- Heat Exchanger incorporated in return flow
- Hand and Semi-Automatic Cycle Operation
- Built-in provision for core cylinder
- Provision for zero leakage of nitrogen gas
STANDARD ACCESSORIES
1. FANUC Control Motors
2. 4” Spindle Bore
3. Auto 4 Steps Spindle Speed Change
4. H4 0r V8 Turret
5. Auto Coolant, Hydraulic and Lubrication System
6. Splash Guard
7. Hydraulic Tailstock
8. Work Light
9. Tool Box with Tools
OPTIONS
1. Extra Spindle Bore and Motor
2. Spindle Oil Chiller
3. Hydraulic / Manual Chuck
4. C Axis or Spindle 1/15 Degree Indexing
5. Driving tool Turret
6. Steady Rest
7. Follow Rest
8. Special Boring Bar Holder
9. Higher Coolant Pressure
10. Chip Conveyor
11. CE Mark
12. Transformer
