6AXIS DEBURRING EQUIPMENT
STANDARD ACCESSORIES
1. FANUC Control Motors
2. 4” Spindle Bore
3. Auto 4 Steps Spindle Speed Change
4. H4 0r V8 Turret
5. Auto Coolant, Hydraulic and Lubrication System
6. Splash Guard
7. Hydraulic Tailstock
8. Work Light
9. Tool Box with Tools
OPTIONS
1. Extra Spindle Bore and Motor
2. Spindle Oil Chiller
3. Hydraulic / Manual Chuck
4. C Axis or Spindle 1/15 Degree Indexing
5. Driving tool Turret
6. Steady Rest
7. Follow Rest
8. Special Boring Bar Holder
9. Higher Coolant Pressure
10. Chip Conveyor
11. CE Mark
12. Transformer

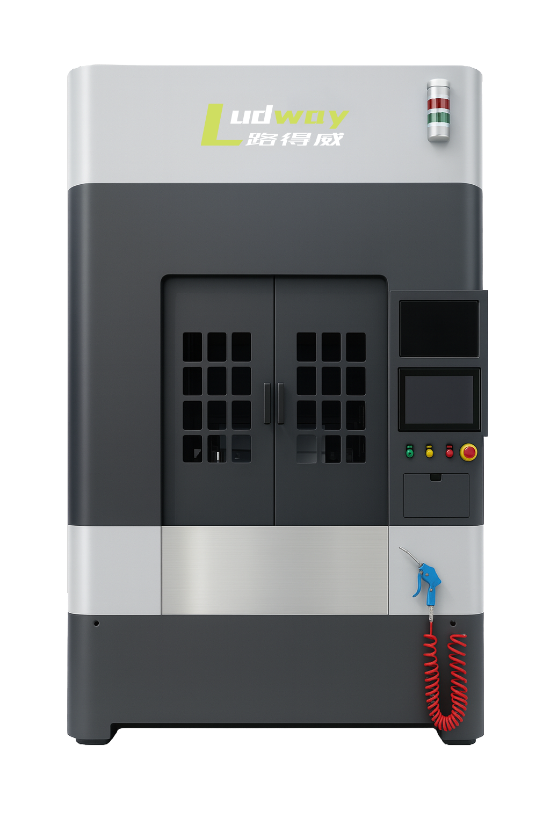

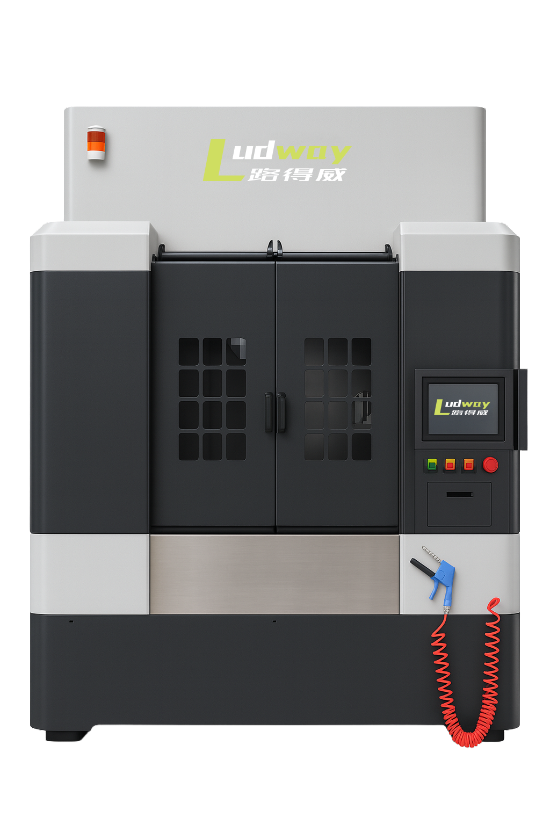

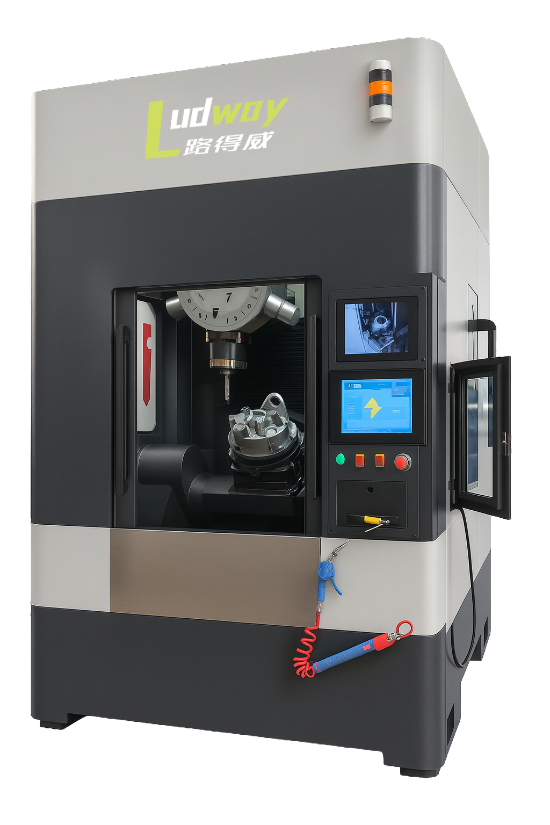

| MODEL | DESCRIPTION | LDW-6AXIS-5T-40 | LDW-6AXIS-5T-50 | LDW-6AXIS-5T-60 | LDW-6AXIS-5T-70 |
|---|---|---|---|---|---|
| Specifications | Dimensions | 1900*1450*2360mm | 2050*1650*2570mm | 2250*1800*2800mm | 2960*2300*3180mm |
| Equipment Travel | X400mm+Y400mm+Z300mm | X500mm+500mm+Z400mm | X600mm+Y600mm+Z350mm | X700mm+Y700mm+Z600mm | |
| Maximum Processing Size | 350*350*300mm | 550*450*400mm | 750*650*500mm | 1150*850*600mm | |
| Speed | Idle Speed: 32000mm/Min | ||||
| Processing Speed: 1000-10000mm/Min | |||||
| Distance Between Spindle Nose and Worktable | 50-550mm | ||||
| Spindle Cooling Method | Oil Cooling / Air Cooling | ||||
| Air Pressure Requirement | ≥0.55MPa | ||||
| Number of Spindles | 5 | ||||
| Drive system parameters | Processing accuracy: 0.02mm/300mm | ||||
| Drive motor | 1.5KW×2 + 4.4KW + 750W×5 | ||||
| Total weight | 5T | ||||
| Control system brand | Xindai | ||||
| Number of Control Axes | 6+2 | ||||
| Handwheel | Standard | ||||
| Lubrication system | Automatic Lubrication Device | ||||
| Spindle Motor Parameters | Brand | 1717 5 Ludway | |||
| Spindle power | 1.0KW-5.5KW | ||||
| Spindle speed | 3000-24000RPM | ||||
| Tool Clamping Range | Φ3-Φ18 | ||||
Specifications are subject to change without prior notice
• Adopting Taiwan’s (new generation) multi axis control dedicated system.
• Equipped with Taiwan’s (new generation) servo control motor, it has fast response speed, smooth running trajectory, and precise position control.
• The spindle can be at any angle, the tool change is fast, and there are pneumatic polishing tools available • Adopting a six axis teaching programming method, multiple specifications of workpieces can be taught, and the program can be stored.
• The main structure of the equipment is formed by casting, with high rigidity, high precision, no tool vibration during processing, and fast feed rate.
• Grinding and deburring tools can achieve a reasonable combination of flexible and rigid tools.
• Quick change of tooling
